PT-1-2440
Stand Alone Single Ciruit Programmable Bell Timer


preview

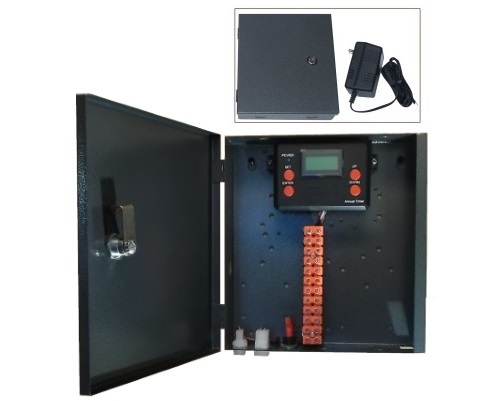

PT-1-2440
                              timer timerwithbell timer
                              with buzzertimer
                              with bell & clocktimer
                              with bell & clock

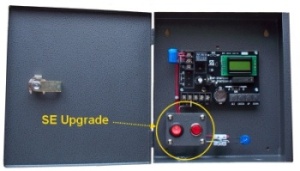

   PT-1-2440         PT-1-2440-6     PT-1-2440-4H   PT-1-2440-6D  PT-1-2440-4HD





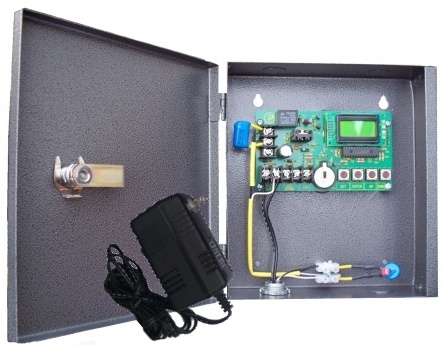

  • Plug-in transformer 24 volts AC 1.3 amps or 50 VA (operates on regular 120 VAC)
  • Form “C” relay contacts are rated 10 amp @ 120VAC/24VDC.
  • EE Prom memory protects against loss of programming due to power failure.
  • Accurate crystal controlled clock.
  • ON/OFF control or PULSE/MOMENTARY 1 to 99 seconds
  • 50 programmed daily events.
  • Block programming capacity can accommodate a total of 350 events per week.
  • 10 programmable Holiday dates.
  • Alphanumeric LCD display simplifies programming.
  • Standard or Daylight Savings Time settings.
  • Automatic compensation for leap year.
  • Lithium battery backup maintains clock
  • Dimensions: 8.5”H x 7.5”W x 3.5”D.
  • 1/2" and 3/4" combination knockouts.



Item

Description

Product

PT-1-2440

Relay

2 Output Relays

Relay Rating

Form "C" 10 Amps

Maximum Events

50 Events per relay

Power

24 Volts AC Plugin Transformer (supplied)

Size

8.5”H x 7.5”W x 3.5”D

Colour

Grey

Weight

5.0 lbs

Maximum Load

1.3 Amps(50VA) @ 24VAC






















Figure 1

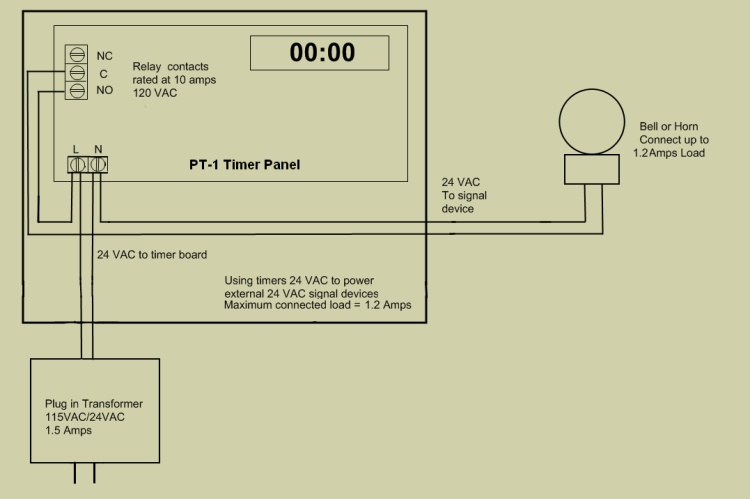

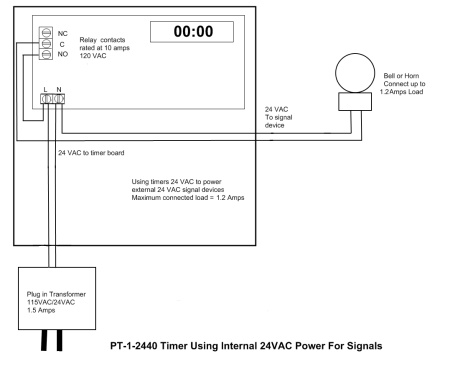

Figure 1 Internal Power For Signals

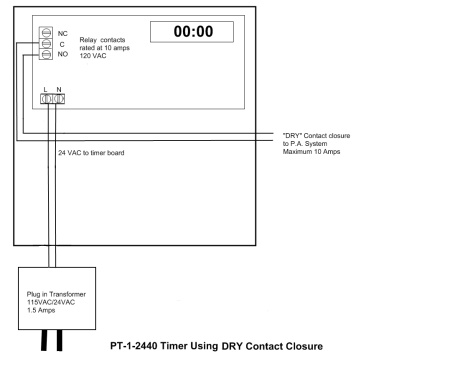

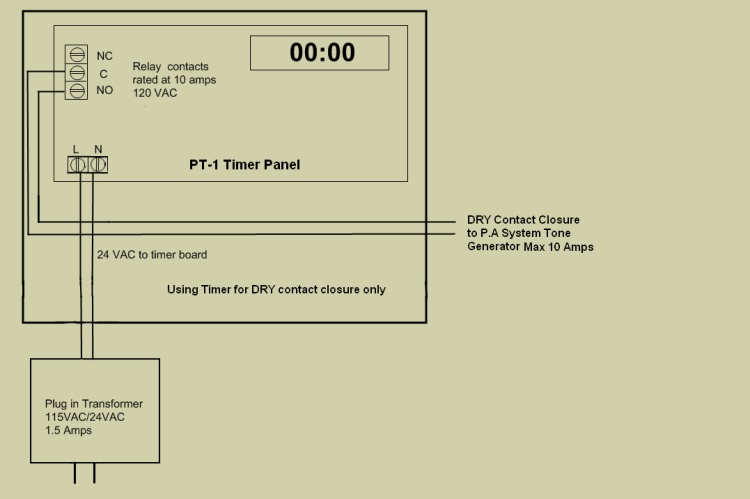

Figure 2 "DRY" Contact Closure

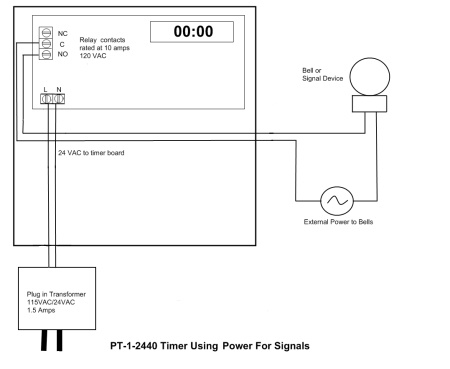

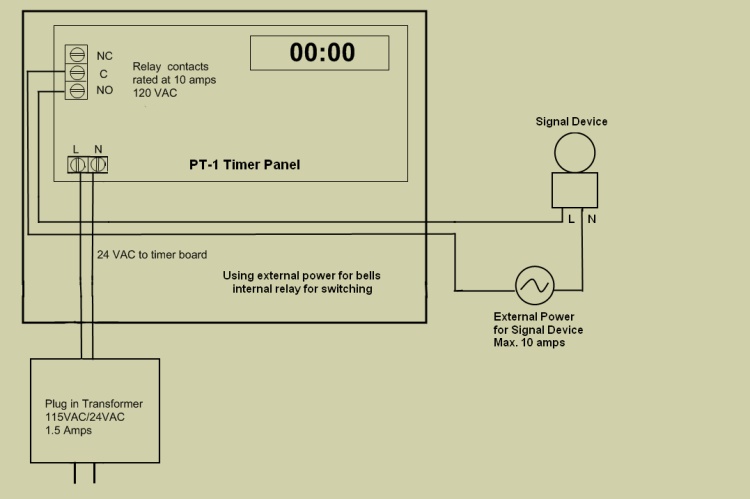

Figure 3 External Power For Signals

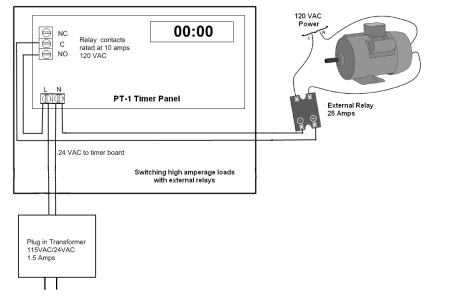

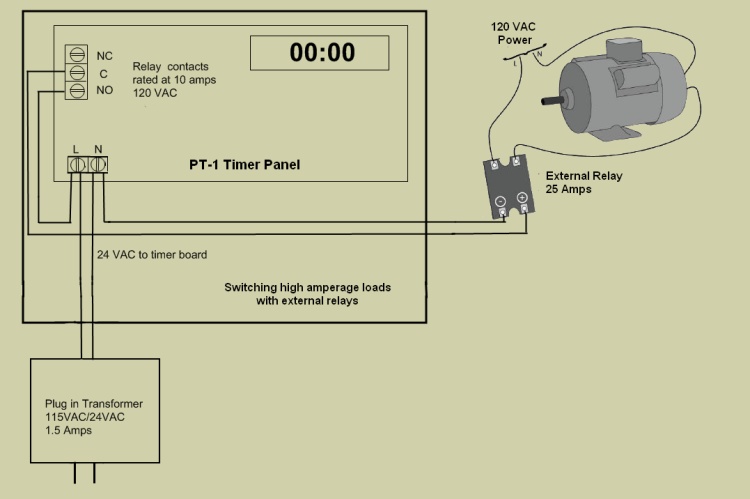

Figure 4 External Switching For High Amp Loads

Figure 5 timer with buzzers clocks
