DESIGN/BUILD  FACTORY BREAK TIMERS - SCHOOL BELL TIMERS- CHURCH BELL TIMERS
COMPLETE SYSTEMS PLUG N PLAY EASY SETUP!

About Us



For  over 25 years we have specialized in signal control in schools and factories, I design & build each timer
and peripherals based on the specific requirements of each client, during this time we have developed timer and
 timer packages based on the most requested designs so we now have a list of stock items that have become
our best sellers ( below is a  list of our most popular packages)

Unlike many online sellers of timers and timer packages I like to talk to  each customer to determine their requirements
 and come up with a solution  based on what they require and work within their budget.  I invite all potential clients to
call me so that i may discuss their exact requirements then we can narrow down some of the choices.

In most cases installing a new factory bell system or school bell system is very simple however it is well worth the time
to have a quick discussion,  if you have an existing signal system we can integrate any one of our timers into that system.

What Timer is best for You?



For customers that want very basic  timer that will  signal lunches and breaks  and perhaps start and end of work then
our basic PT series timers will be the most economical choice, it will perform all those daily events for you
and has battery backup and automatic daylight savings with built in calendar..

Option 1
PT Series timer can have up to 50 events per day.  so for example if you wanted to ring a bell at
 8:00am for 4 seconds from Mon to Fri that would use  1 event so that would leave 49 more  available.

The PT series timer  is programmed directly from the 4 button keypad and
has a clock accuracy of +/- 20 seconds per month.
If you require a timer with more accurate time clock
then the next level up would be our. AutoBell or TK Series.


Option 2
AutoBell TK series is our next generation timer for customers that require more accurate
 time control the AutoBell timer when operating in stand alone mode
(not connected to wifi) boasts a +/- 2 second per month accurate
 to the atomic clock.
The AutoBell  can be programmed from the touch screen  at the timer
or it can be  programmed and controlled from any  Smart Phone PC
or Tablet when it is connected to your network via Wifi connectivity.

The AutoBell does not have a physical network cat5 connection it is connected by Wifi, if you prefer a hard
wired Network connection the step up to the  WR-2 series Network connected Timer,

Option 3

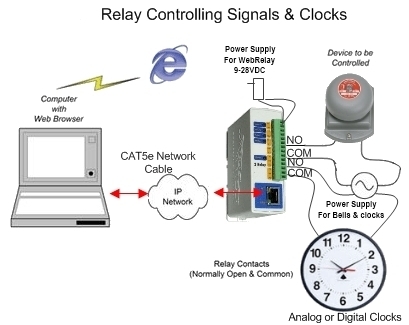

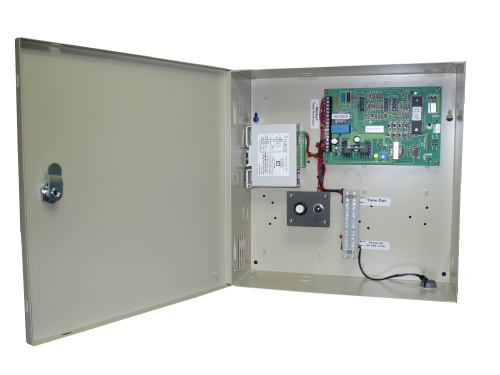

 WR-2 Series is connected to your network with normal CAT5e cable and
has a built in WEB Interface or WEB GUI so it can be  easlily programmed and controlled
over any web browser  on any network PC. The WR-2 can be set to
automatically synchronize  with any NTP server so you get
Atomic clock precision time control.




Other Things to Consider



If you have a large facility sometimes running wires to bells or buzzers will be the major cost, so in these cases Wifi or wireless
transmission might be more cost effect, if you have a paging system  then it might be best to piggyback a tone over your
existing paging amplifier.

Wired System with Centralized Controller

Wireless or Wifi  System with Centralized Controller and Remote Receivers

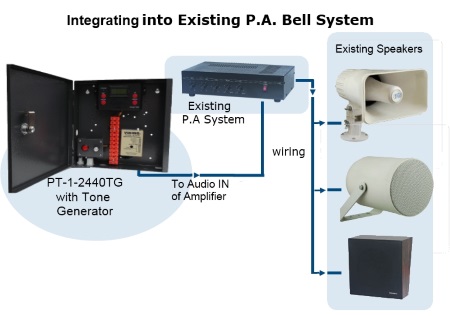

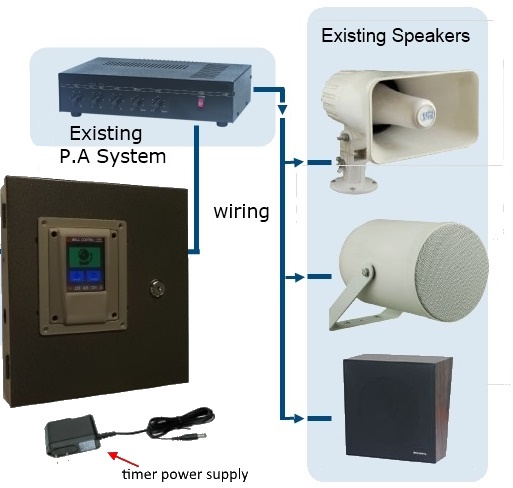

Tone Output to existing Paging System



How many zones do you have? is the entire school or factory on the same bell schedule or do you have different departments
on different bell times or in the case of a school do you have elementary  and high school  with different bell schedules

Here is a list of some of the systems we can replace and many more
  • Simplex
  • Paragon
  • Dukane
  • Altronix
  • Kronos
  • Acroprint
  • Tork
  • Intermatic
  • Montgomery
  • Dayton
  • ADP
  • Amano
  • Lathem
  • Cincinnati
  • Rauland
  • Bogen
  • Ceridian
  • National Time


We can configure any one of our timers to output to a 24 VAC signal, 24 VDC signal, 120 VAC signal or output to a
self amplified  paging speaker or paging amplifier. We have the largest selection of Programmable Factory timers
and school bell timers, we work with each client to  come up with a  cost effective solution based on your specific application.

  • Simple 7 day timers
  • Wifi Timers
  • Network Timers
  • PoE clocks with programmable Relay
  • Masterclock Clock Systems
  • Timers with audio out to paging amplifiers

Stand Alone Timer No Wifi or network Connectivity



PT-Series Timer (Stand Alone Timer)
The PT series timer is our most popular and economical 7 day timer. It has 2 programmable output relays. Each relay can be set to turn ON/OFF or momentary on (1 -99 seconds) for up to 50 events per day.
The timer is stand alone and has no interface for computer hookup, all settings are programmed through the 4 keys located on the front panel.

Accuracy of the timer is +/- 20 seconds per month.
if you don't require time synchronize  to NTP server or computer network interface then the PT timer is the timer of choice.

  • 2 Normally Open relays rated at 120 VAC/5 amps
  • 50 events per day
  • On/OFF or Pulse control from 1-99 seconds duration
  • Battery backup to prevent loss of program or time during power outage
  • Built in Automatic Daylight savings adjustment

Complete Plug n Play Packages Featuring  PT Series timer


$198.00
 PT-1-2440 (timer only no signal device)
This is a complete Plug n Play package minus the signal device, suited for customers that have their own bell or buzzer and just require a reliable timer to activate it.
package includes
  • PT-1-2440 Timer
  • Plug in power supply  with simple snap in connector and 5 foot power cord operates on regular AC plug
  • Output can be set to 24 VAC, 24 VDC , 12VDC or dry contact closure
  • Relay rated at 120 VAC  5 amps
  • Size of metal box 9.5"x 8.0"x 2.0"

Note: For  120 VAC output  add $50.00


$279.00


Additional 6 inch bell
$89.00 ea
PT-1-2440-6
This is a complete Plug n Play package with a Model 43T 6 inch bell, ready to work out of the box.
package includes
  • PT-1-2440 Timer
  • MG2450P plug in power supply 120VAC/24 VAC 1.3 amp  with simple snap in connector and 5 foot power cord operates on regular AC plug
  • 1 Model 43T  6 inch 24 VAC signal bell 86dB sound rating
  • 15 foot bell hook up wire
  • Size of metal box 9.5"x 8.0"x 2.0

Note: Best for low to medium sound background areas

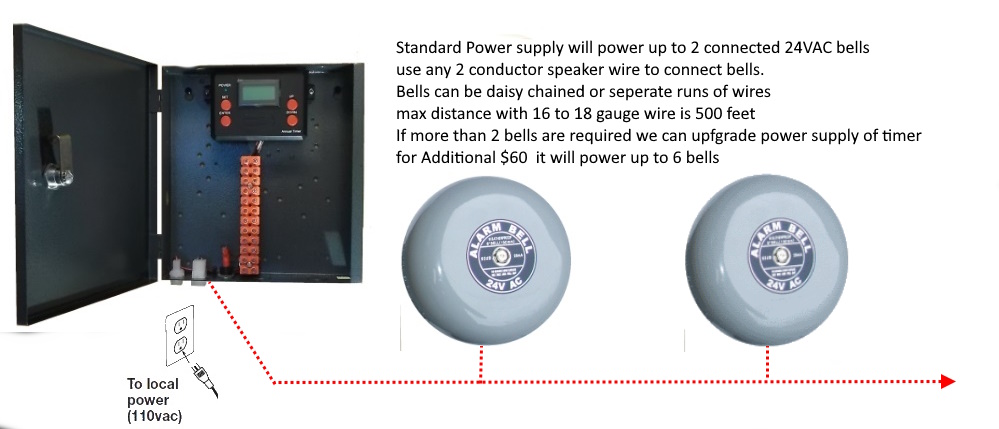

Extra bells are $89.00 each and standard timer will power up to 2 bells  we can upgrade the power supply for  an additional $60  and the
timer will power up to 6 bells if required. buzzers can be daisy chained together (NO MORE THAN 2 BELLS PER WIRE RUN)
min 18 gauge 2 conductor low voltage stranded type speaker wire  bells operate on 24 VAC .67 amps each


$575.00

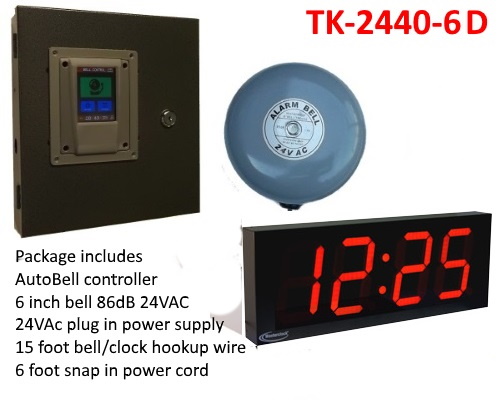

 PT-1-2440-6D
This is a complete Plug n Play package , it includes everything including a 4 inch display digital clock, for customers that require a digital clock to display correct time in a larger format for all employees to see.
package includes
  • PT-1-2440 Timer
  • MG2450P plug in power supply 120VAC/24 VAC 1.3 amp  with simple snap in connector and 5 foot power cord operates on regular AC plug
  • 1 Model 43T 6 inch 24 VAC signal bell 86dB sound rating
  • 15 foot bell/clock hook up wire
  • 1 wired digital display clock 4 inch numbers ( overall 13" X 7"X 2")
  • Size of metal box 9.5"x 8.0"x 2.0

Extra bells are $89.00 each and standard timer will power up to 2 bells  we can upgrade the power supply for  an additional $60  and the
timer will power up to 6 bells if required. buzzers can be daisy chained together (NO MORE THAN 2 BELLS PER WIRE RUN)
min 18 gauge 2 conductor low voltage stranded type speaker wire  bells operate on 24 VAC .67 amps each


$310.00


Additional Ml Buzzers
 $95.00 ea

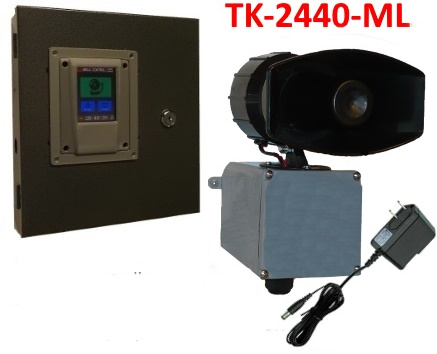

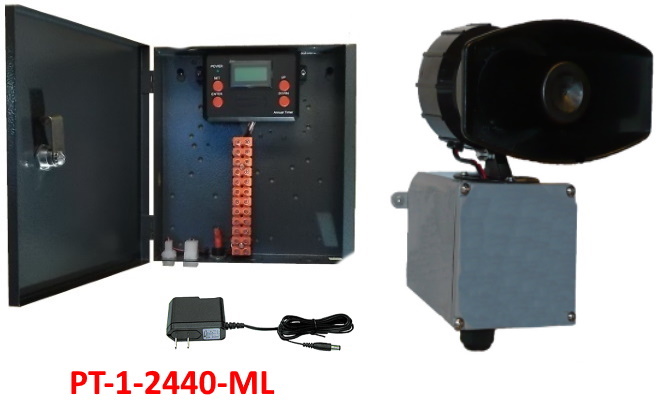

PT-1-2440-ML
This is a complete Plug n Play package with a Model ML Buzzer/Horn, ready to work out of the box.
package includes
  • PT-1-2440 Timer
  • 12 VDC plug in power supply 120VAC/12 VDC 2.0 amp  with simple snap in connector and 5 foot power cord operates on regular AC plug
  • 1 Model ML Buzzer 12 VDC signal 101dB sound rating with adjustable sound level outdoor rated
  • 15 foot buzzer  hook up wire
  • Size of metal box 9.5"x 8.0"x 2.0

Note: Best for medium to High background areas if employees wear ear protection then this is best model

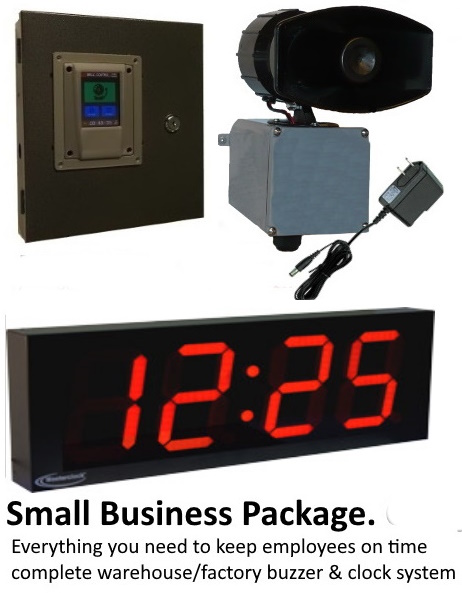

$595.00
 PT-1-2440-MLD
This is a complete Plug n Play package with a Model ML Buzzer/Horn, ready to work out of the box.
package includes
  • PT-1-2440 Timer
  • 12 VDC plug in power supply 120VAC/12 VDC 2.0 amp  with simple snap in connector and 5 foot power cord operates on regular AC plug
  • 1 Model ML Buzzer 12 VDC signal101dB sound rating with adjustable sound level outdoor rated
  • 15 foot buzzer/clock hook up wire
  • 1 wired digital display clock 4 inch numbers ( overall 13" X 7"X 2")
  • Size of metal box 9.5"x 8.0"x 2.0

Note: Best for medium to High background areas if employees wear ear protection then this is best model

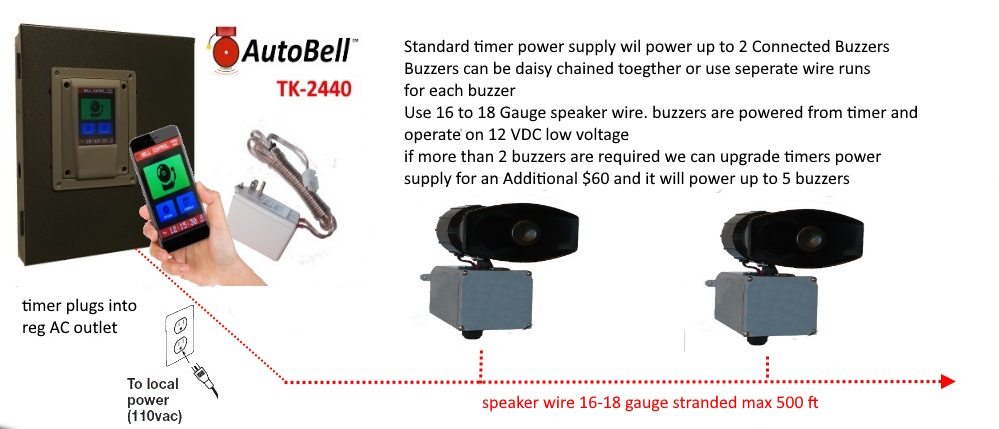

Additional buzzers can be added standard timer will power up to 2 buzzers  we can upgrade power supply for an additional $60  this upgraded power supply will power up to 5 total buzzers






$359.00
 PT-1-2440-4H
This is a complete Plug n Play package with a 5 inch loud industrial buzzer rated at 24 VAC and 101dB rating, ready to work out of the box
package includes
  • PT-1-2440 Timer
  • MG2450P plug in power supply 120VAC/24 VAC 1.3 amp  with simple snap in connector and 5 foot power cord operates on regular AC plug
  • 1 Model 874G5 24 VAC 101dB adjustable sound level buzzer
  • 15 foot buzzer hook up wire
  • Size of metal box 9.5"x 8.0"x 2.0

Note:  Best for medium to loud background noise

Extra 4H buzzers are $145.00 each and standard timer will power up to 2 buzzers  we can upgrade the power supply fro an additional $60  and the
timer will power up to 5 buzzers if required. buzzers can be daisy chained together (NO MORE THAN 2 BUZZERS PER WIRE RUN)
min 18 gauge 2 conductor low voltage stranded type speaker wire  buzzers operate on 24 VAC .67 amps each


$675.00
 PT-1-2440-4HD
This is a complete Plug n Play package , it includes everything including a 4 inch display digital clock, for customers that require a digital clock to display correct time in a larger format for all employees to see.
package includes
  • PT-1-2440 Timer
  • MG2450P plug in power supply 120VAC/24 VAC 1.3 amp  with simple snap in connector and 5 foot power cord operates on regular AC plug
  • 1 Model 874G5 24 VAC 101dB adjustable sound level buzzer
  • 1 digital display clock 4 inch numbers ( overall 13" X 7"X 2")
  • 15 foot buzzer/clock hook up wire
  • Size of metal box 9.5"x 8.0"x 2.0

Extra 4H buzzers are $145.00 each and standard timer will power up to 2 buzzers  we can upgrade the power supply fro an additional $60  and the
timer will power up to 6 buzzers if required. buzzers can be daisy chained together (NO MORE THAN 2 BUZZERS PER WIRE RUN)
min 18 guage 2 conductor low voltage stranded type speaker wire  buzzers operate on 24 VAC .67 amps each


$358.00
using  MTG-10 tone generator
Link to Sample Tones for MTG-10

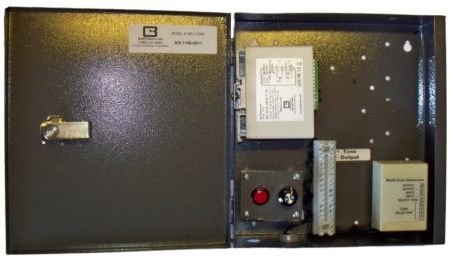

 PT-1-2440TG (timer only no signal device)
This is a complete Plug n Play package minus the signal device, suited for customers that have a paging system and want to use their existing paging speakers to project a audible tone

package includes
  • PT-1-2440 Timer
  • 12VDC plug in power supply  with simple snap in connector and 5 foot power cord operates on regular AC plug
  • 1 MTG-10 tone Generator Module ( line level output)
  • Tone selector switch and manual ring
  • Output is line level output (600ohm) to paging amplifier or self amplified speaker.
  • Size of metal box 9.5"x 8.0"x 2.0


$575.00

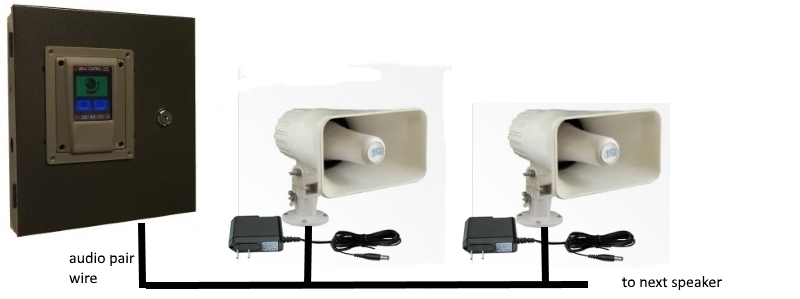

 PT-1-2440TG-SAL
This is a complete Plug n Play package including a self amplified horn speaker, suited for customers that do not have a central paging system and require a audible tone rather than a traditional bell or buzzer sound.
package includes
  • PT-1-2440 Timer
  • MTG-10 tone Generator Module ( line level output)
  • 12 VDC plug in power supply with clip connector to TK-2440 and 5 foot power cord operates on regular AC plug
  • Tone selector switch and manual ring
  • 1 Model SAL403  105dB  5 watt self amplified speaker horn with volume control and plug in 24 VDC power supply
  • Size of metal box 9.5"x 8.0"x 2.0




$1295.00

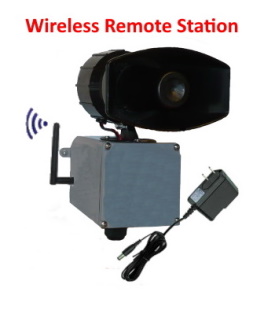

Additional Wireless Buzzer Stations
$595.00 ea

Additional Wired Buzzer Stations
$95.00 ea

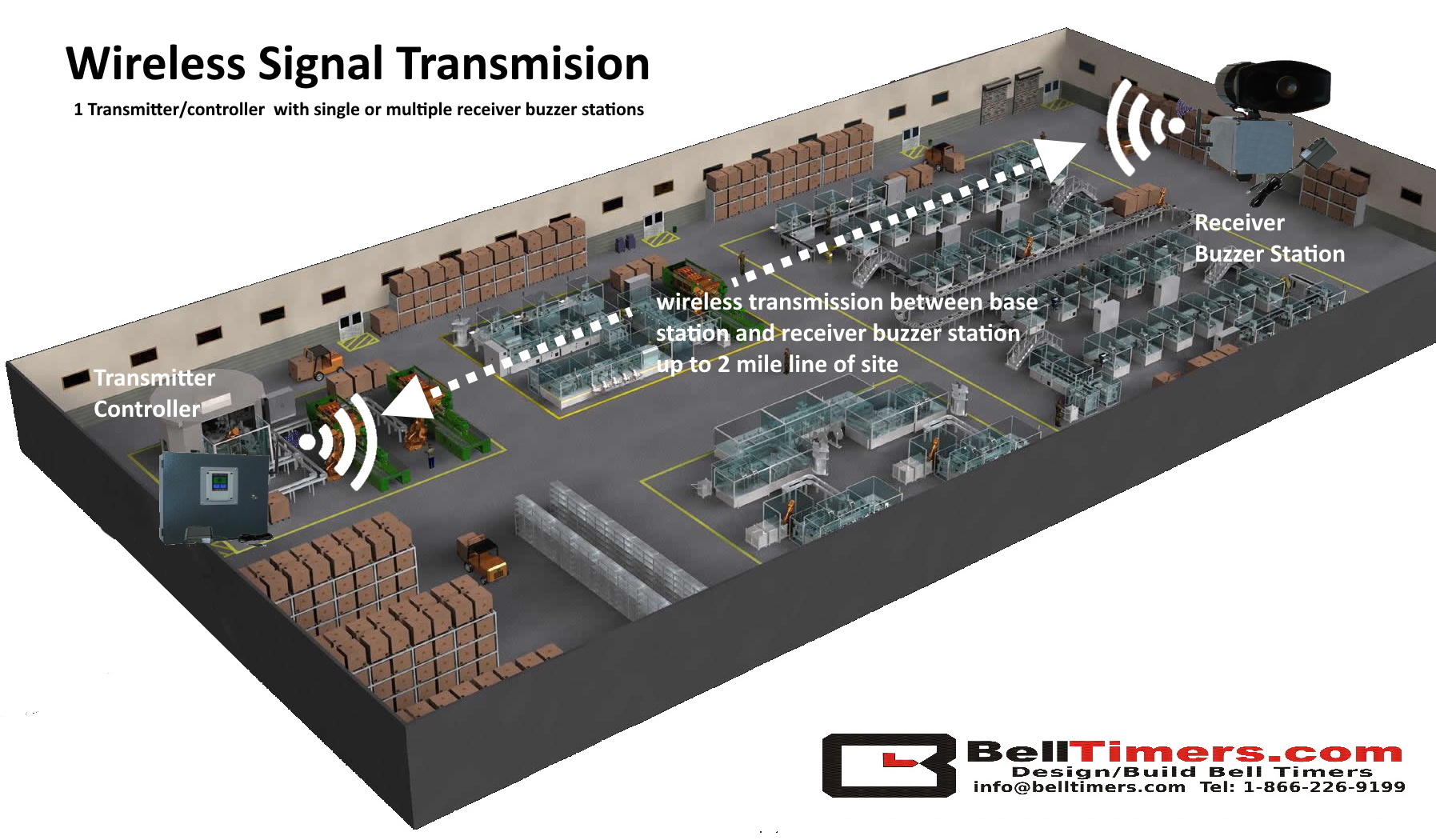

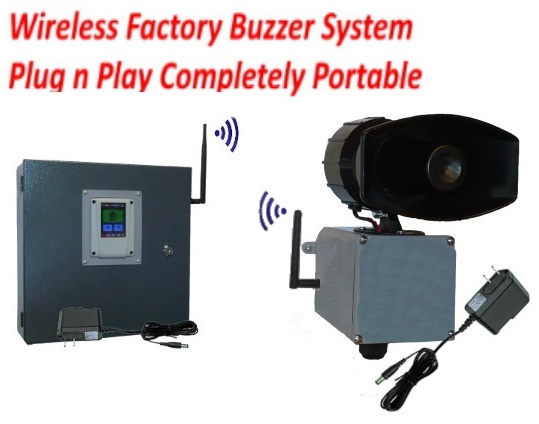

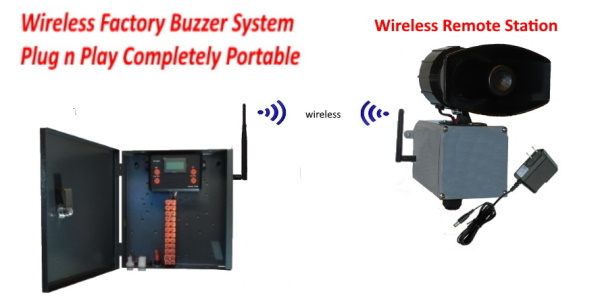

 PT-1-2440-4HW  No wiring!!
This is a complete Plug n Play package , includes wireless transmitter and wireless remote buzzer station. No need for wires just plug timer/transmitter and remote buzzer into any regular AC receptacle and ready to work out of the box.

when more than 1 buzzer is required and it is too expensive or not feasible to run wires

Completely Portable
package includes
  • PT-1-2440 Timer
  • 1 Wireless transmitter 2 mile line of site range
  • 1 Wireless Receiver
  • plug in power supply 120VAC/12 VDC 2.0  amp  with simple snap in connector and 5 foot power cord operates on regular AC plug
  • 1 ModelML Buzzer 12 VDC 101dB adjustable sound level buzzer
  • Size of metal box 9.5"x 8.0"x 2.0


Stand Alone or Wifi connected Timer with NTP Time Synchronization


TK-DIY
$189.00
AUTOBELL TK Series ( Stand Alone & Wifi Timer)

The all New AutoBell  Timer is a extremely versatile 24 hour 365 Day event Timer. Designed to support a wide variety of applications: Factory Lunch Break timer,
School Class Change System, Building Automation, Security and
Access Control, Turning ON/OFF Lights, HVAC, Pumps, Fans any circuit that needs to operate on a timed ON/OFF or momentary ON/OFF Control.

Multiple events per day or per week can be scheduled  with holiday programming to override normal day events.   Ease of programming is facilitated from a touch screen user interface. Extremely accurate internal  clock crystal (+/- 1 second per week) or for even  more accuracy connect with optional WiFi interface
and reference the Atomic clock over Wifi network.

No other timer offers the accuracy and ease of use  than the AutoBell timer provides.


 WiFi connectivity
for Atomic clock precision time keeping AutoBell will
keep time with your network No More Time Drift
  • Touch Screen Programming...now programming is easier than ever, just like navigating on your smart Phone.
  • All programming and control is fully accessible over any mobile device
  • Ability to switch between 3 different bell schedules
  • Initiate Lockdown  or Manual ring from Mobile device
  • Increased Time accuracy!... No more annoying Time Drift, with Autobell we have completely eliminated time drift the  AutoBell has the ability to set its time to the Atomic clock just like that of your Cell phone.
  • Ability to program up to 3 different bell schedules into timer, so if you have a normal day schedule and Early release or other it is very easy to switch bell schedules... No need to reprogram timer just select from up to 3 schedules

Complete Plug n Play Packages Featuring  AutoBell TK Series timer

$355.00
 TK-2440 (timer only no signal device)
This is a complete Plug n Play package minus the signal device, suited for customers that have their own bell or buzzer and just require a reliable timer to activate it.
package includes
  • TK-2440 AutoBell Timer
  •  Plug in power supply 120VAC/24 VAC 1.3 amp  with clip connector to TK-2440 and 5 foot power cord operates on regular AC plug
  • Output can be set to 24 VAC, 24 VDC , 12VDc or dry contact closure
  • Relay rated at 120 VAC  5 amps
  • Size of metal box 9.5"x 8.0"x 2.0


$395.00
 TK-2440-6
Complete Timer package with 1 Bell, everything needed
for easy and quick installation
package includes;
  • AutoBell TK-2440
  • MG2450P plug in power supply
  • 1 Model 43T  6 inch bell 24VAC 86dB with 15 foot hook-up wire and easy clip connector for connection to timer box
  • Size of metal box 9.5"x 8.0"x 2.0"

Extra bells are $89.00 each and standard timer will power up to 2 bells  we can upgrade the power supply for  an additional $60  and the
timer will power up to 6 bells if required. buzzers can be daisy chained together (NO MORE THAN 2 BELLS PER WIRE RUN)
min 18 gauge 2 conductor low voltage stranded type speaker wire  bells operate on 24 VAC .67 amps each


$695.00
 TK-2440-6D
This is a complete Plug n Play package , it includes everything including a 4 inch display digital clock, for customers that require a digital clock to display correct time in a larger format for all employees to see.
package includes:
  • AutoBell TK-2440
  • MG2450P plug in power supply
  • 1 Model 43T  6 inch bell 24VAC 86dB with 15 foot hook-up wire and easy clip connector for connection to timer box
  • 1 digital display clock 4 inch numbers ( overall 13" X 7"X 2")
  • 15 foot bell/clock hook up wire
  • Size of metal box 9.5"x 8.0"x 2.0

Extra bells are $89.00 each and standard timer will power up to 2 bells  we can upgrade the power supply for  an additional $60  and the
timer will power up to 6 bells if required. buzzers can be daisy chained together (NO MORE THAN 2 BELLS PER WIRE RUN)
min 18 gauge 2 conductor low voltage stranded type speaker wire  bells operate on 24 VAC .67 amps each



$450.00





Additional ML Buzzers
$95.00 ea
 TK-2440-ML
Complete Timer package with 1 ML Buzzer, everything needed
for easy and quick installation package includes;
  • AutoBell TK-2440
  • plug in power supply 120VAC/12VDC
  • 1ML buzzer 101dB  with 15 foot hook-up wire and easy clip connector for connection to timer box
  • 1 digital display clock 4 inch numbers ( overall 13" X 7"X 2")
  • 15 foot bell/clock hook up wire
  • Size of metal box 9.5"x 8.0"x 2.0





$750.00
 TK-2440-MLD
This is a complete Plug n Play package , it includes everything including a 4 inch display digital clock, for customers that require a digital clock to display correct time in a larger format for all employees to see.
package includes:
  • AutoBell TK-2440
  •  plug in power supply 120 VAC/12VDC
  • 1 ML Buzzer 101 dB 101dB with volume control and 15 foot hook-up wire and easy clip connector for connection to timer box
  • 1 digital display clock 4 inch numbers ( overall 13" X 7"X 2")
  • 15 foot bell/clock hook up wire
  • Size of metal box 9.5"x 8.0"x 2.0

Additional buzzers can be added standard timer will power up to 2 buzzers  we can upgrade power supply for an additional $60  this upgraded power supply will power up to 5 total buzzers


$495.00
 TK-2440-4H
Complete Timer package with 1Buzzer, everything needed
for easy and quick installation package includes;
  • AutoBell TK-2440
  • MG2450P plug in power supply
  • 874G5 buzzer 24VAC 101dB adjustable sound level with 15 foot hook-up wire and easy clip connector for connection to timer box
  • Size of metal box 9.5"x 8.0"x 2.0

Extra 4H buzzers are $145.00 each and standard timer will power up to 2 buzzers  we can upgrade the power supply fro an additional $60  and the
timer will power up to 6 buzzers if required. buzzers can be daisy chained together (NO MORE THAN 2 BUZZERS PER WIRE RUN)
min 18 guage 2 conductor low voltage stranded type speaker wire  buzzers operate on 24 VAC .67 amps each




$795.00
 TK-2440-4HD
This is a complete Plug n Play package , it includes everything including a 4 inch display digital clock, for customers that require a digital clock to display correct time in a larger format for all employees to see.
package includes:
  • AutoBell TK-2440
  • MG2450P plug in power supply
  • 874G5 buzzer 24VAC 101dB adjustable sound level with 15 foot hook-up wire and easy clip connector for connection to timer box
  • 1 wired digital display clock 4 inch numbers ( overall 13" X 7"X 2")
  • 15 foot buzzer/clock hook up wire
  • Size of metal box 9.5"x 8.0"x 2.0

Extra 4H buzzers are $145.00 each and standard timer will power up to 2 buzzers  we can upgrade the power supply fro an additional $60  and the
timer will power up to 6 buzzers if required. buzzers can be daisy chained together (NO MORE THAN 2 BUZZERS PER WIRE RUN)
min 18 guage 2 conductor low voltage stranded type speaker wire  buzzers operate on 24 VAC .67 amps each


$545.00
using  MTG-10 tone generator
Link to Sample Tones for MTG-10
 TK-2440TG (timer only no signal device)
Play tones instead of traditional  buzzer or bell,  that can be broadcasted over  self amplified speaker or over Paging system speakers.

If you do not have a paging system in place then select the TK-2440-TGSAL it comes with a self amplified playback speaker so you don't require a paging amplifier

If you do have a paging system then select the TK-2440-TG and the timer will utilize your existing paging speakers to broadcast a tone.

see picture below for connection to paging system amplifier


  • TK-2440 Timer
  • 12VDC plug in power supply  with simple snap in connector and 5 foot power cord operates on regular AC plug
  • Tone Generator Module
  • Tone selector switch and manual ring
  • Output is line level output (600ohm) to paging amplifier or self amplified speaker.
  • Size of metal box 9.5"x 8.0"x 2.0


$745.00
 TK-2440TG-SAL
This is a complete Plug n Play package including a self amplified horn speaker, suited for customers that do not have a central paging system and require a audible tone rather than a traditional bell or buzzer sound.
package includes
  • TK-2440 Timer
  • Tone Generator Module ( line level output) 9 different tones
  • 12 VDC plug in power supply with clip connector to TK-2440 and 5 foot power cord operates on regular AC plug
  • Tone selector switch and manual ring
  • 1 Model SAL403  105dB  5 watt self amplified speaker horn with volume control and plug in 24 VDC power supply
  • Size of metal box 9.5"x 8.0"x 2.0


Complete Package price
$1395.00


Additional Wireless Buzzer Stations
$595.00 ea


Additional wired buzzers
$95.00 ea
 TK-2440-MLW  No wiring!!
This is a complete Plug n Play package , includes wireless transmitter and wireless remote buzzer station. No need for wires just plug timer/transmitter and remote buzzer into any regular AC receptacle and ready to work out of the box.

when more than 1 buzzer is required and it is too expensive or not feasible to run wires

Completely Portable
package includes
  • TK-2440 Timer
  • 1 Wireless transmitter 1 mile line of site range
  • 1 Wireless Receiver
  • plug in power supply 120VAC/12 VDC 2.0 amp  with simple snap in connector and 5 foot power cord operates on regular AC plug
  • 1 Model ML Buzzer  101dB adjustable sound level buzzer
  • Size of metal box 9.5"x 8.0"x 2.0
Network Connected Programmable Relay with NTP Time Synchronization


WR-2  Series ( Network Timer)

WR-2 Controller is an programmable network                                                                                                                             relay with built-in web page interface, allowing complete control from any network connected web browser. It can be controlled and or monitored over any IP network, including private networks, IP based industrial control networks and the Internet.

100 Events Total over 2 output relays

The WR-2 unit allows for total synchronization of your factory bells or horns as well as operate analog and digital wall clocks throughout your facility.

The WR-2 unit can be connected to any computer or network by simple ethernet connection, it can be programmed and operate off-line or in stand alone mode.

Best of all there is no software required, making setup SIMPLE and effortless


                WR-2 Network Timer Complete Plug n Play Packages

$449.00
 WR-2-2440 (timer only no signal device)
This is a complete Plug n Play package minus the signal device, suited for customers that have their own bell or buzzer and just require a reliable timer to activate it.
package includes
  • WR-2-2440 Network Timer
  •  Plug in power supply 120VAC/24 VAC 1.3 amp  with clip connector to WR-2-2440 and 5 foot power cord operates on regular AC plug
  • Output can be set to 24 VAC, 24 VDC , 12VDc or dry contact closure
  • Relay rated at 120 VAC  5 amps
  • Size of metal box 9.5"x 8.0"x 2.0"

$525.00
 WR-2-2440-6
Complete Timer package with 1 Bell, everything needed
for easy and quick installation
package includes;
  • 1 WR-2-2440
  • MG2450P plug in power supply
  • 1 Model 43T 6 inch bell 24VAC 86dB with 15 foot hook-up wire and easy clip connector for connection to timer box
  • Size of metal box 9.5"x 8.0"x 2.0"

$595.00
 WR-2-2440-4H
Complete Timer package with 1Buzzer, everything needed
for easy and quick installation package includes;
  • 1 WR-2-2440
  • MG2450P plug in power supply
  • 874G5 buzzer 24VAC 101dB adjustable sound level with 15 foot hook-up wire and easy clip connector for connection to timer box
  • Size of metal box 9.5"x 8.0"x 2.0"

$795.00
 WR-2-2440-6D
This is a complete Plug n Play package , it includes everything including a 4 inch display digital clock, for customers that require a digital clock to display correct time in a larger format for all employees to see.
package includes:
  • 1 WR-2-2440
  • MG2450P plug in power supply
  • 1 Model 43T  6 inch bell 24VAC 86dB with 15 foot hook-up wire and easy clip connector for connection to timer box
  • 1 wired digital display clock 4 inch numbers ( overall 13" X 7"X 2")
  • 15 foot bell/clock hook up wire
  • Size of metal box 9.5"x 8.0"x 2.0"

$875.00
 WR-2-2440-4HD
This is a complete Plug n Play package , it includes everything including a 4 inch display digital clock, for customers that require a digital clock to display correct time in a larger format for all employees to see.
package includes:
  • WR-2-2440
  • MG2450P plug in power supply
  • 874G5 buzzer 24VAC 101dB adjustable sound level with 15 foot hook-up wire and easy clip connector for connection to timer box
  • 1 wired digital display clock 4 inch numbers ( overall 13" X 7"X 2")
  • 15 foot buzzer/clock hook up wire
  • Size of metal box 9.5"x 8.0"x 2.0"

$595.00
using  MTG-10 tone generator
Link to Sample Tones for MTG-10


WR-2-2440TGVAL Timer with tone output to paging amp
$695.00 ea
using the Valcom 9927A tone generator

Link to Sample Tones for  9927A

WR-2-2440TG (timer only no signal device)
This is a complete Plug n Play package minus the signal device, suited for customers that have a paging system and want to use their existing paging speakers to project a audible tone

package includes
  • WR-2-2440 Timer
  • 12VDC plug in power supply  with simple snap in connector and 5 foot power cord operates on regular AC plug
  • 1 MTG-10 tone Generator Module ( line level output)
  • Tone selector switch and manual ring
  • Output is line level output (600ohm) to paging amplifier or self amplified speaker.
  • Size of metal box 9.5"x 8.0"x 2.0"

$795.00
 WR-2-2440TG-SAL
This is a complete Plug n Play package including a self amplified horn speaker, suited for customers that do not have a central paging system and require a audible tone rather than a traditional bell or buzzer sound.
package includes
  • WR-2-2440 Timer
  • MTG-10 tone Generator Module ( line level output)
  • 12 VDC plug in power supply with clip connector to TK-2440 and 5 foot power cord operates on regular AC plug
  • Tone selector switch and manual ring
  • 1 Model SAL403  105dB self amplified speaker horn with volume control and plug in 24 VDC power supply
  • Size of metal box 9.5"x 8.0"x 2.0"
